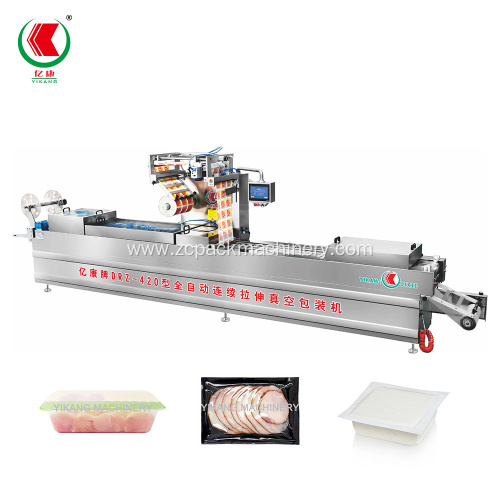

Thermoforming Packaging Machine in Rigid and Flexible Film

Min. Order:
1 Set/Sets
Port:
Qingdao
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.Customizable

BrandYikang

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Video Factory InspectionProvided

Mechanical Test ReportProvided

StatusNew

Degree Of AutomationAutomatic

Power TypeElectric

Place Of OriginChina

Warranty Period1 Year

Supply Ability & Additional Information

Place of OriginChina

PortQingdao

Packaging & Delivery
Selling Units:
Set/Sets

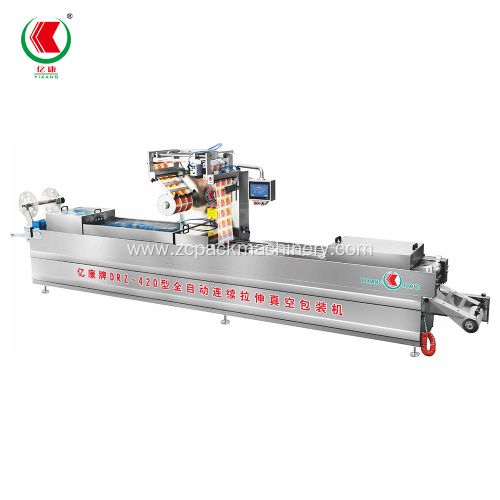

Yikang Thermoforming Machine in Rigid film and Flexible Film

Automatic Thermoforming Modified Atmosphere (MAP) Packaging Machine

This equipment is our company according to many years of R&D and production of automatic continuous Thermoforming Packaging Machine, combined with modified atmosphere function of the MAP machine, independently developed a thermoforming machine for flexible or rigid film with modified atmosphere (MAP) and vacuum options. The machine's forming, vacuum, gas filling, printing production date, cutting and other functions are fully synchronized, with smooth process and stable performance. This equipment solves the limitation that the thermoforming packaging machine can only stretch flexible film or rigid film. It truly realizes the multi-purpose of one machine and meets the packaging needs of our customers.

Equipment Features

1. The frame body is made of high-strength alloy aluminum one-time formation, and is formed by high-precision gantry planing and  milling. Compared with the steel structure and normal aluminum plate structure, it has remarkable features such as high mechanical strength, stable structure, no deformation, good precision and so on.

2. This machine adopts imported German BUSCH vacuum pump, which has the features of high pumping efficiency, high vacuum degree, low noise, stable and  reliable quality, long service life, etc., and the pumping speed is fast.

3. Equipped with American Banner photoelectric switches, it can package light film and color film, reduce the cost and make the product more upscale.

4. The equipment can be configured with automatic coding system according to the user's requirements, and the printing of packaging date and parameters can be completed at one time during packaging, without manual coding, improving work efficiency.

5. The equipment is equipped with an edge material recycling system, which ensures the hygienic requirements of the user's production environment.

6. The cutting knife of the equipment adopts hydraulic punching knife, which can be separated by one stamping, and the cut is beautiful and burr-free. It has the advantages of reliable operation, long service life and high work efficiency.

7. The control system of this machine adopts the world renowned Japanese Mitsubishi 10-inch color large-screen touch screen, Omron programmable logic controller (PLC) control stepping system, Mitsubishi servo motor, high operating precision, all actions coordinated automatically and stably, which ensures reliable operation of the machine and easy to use. Push-button switch adopts French "Schneider" electrical company products, with beautiful appearance, safe and reliable operation.



Main Technical Parameters



Name

DRZ-420 Technical Parameter

DRZ-455 Technical Parameter

Upper film width

400mm

435mm

Lower film width

422mm

457mm

Vacuum

-0.1Mpa

-0.1Mpa

Compressed air

≧0.6MPa

≧0.6MPa

Cooling water

≧0.15MPa

≧0.15MPa

Power Supply

Adapted voltage

Adapted voltage

Average power

Appr. 10KW

Appr. 11KW

Total weight

appr. 2200kg

appr. 2500kg

Overall Dimensions

appr. 5500*1050*1850mm

appr.6500*1050*1850mm
